differential clogging indicator

VACUUM SWITCH

Threading, the material of the diaphragm, pressure range and electric wiring are produced in accordance with customer requirements. Versions with integrated diagnostics are also produced to meet increasingly higher safety standards, which enable the on-board electronics to detect faulty connections, short circuits and breaks in cable connections.

23	26-266

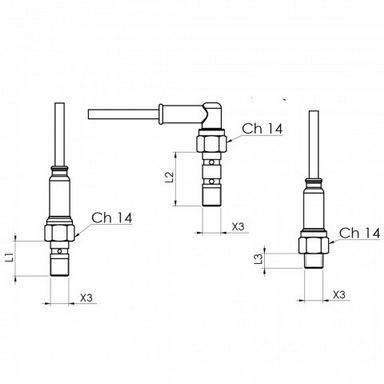

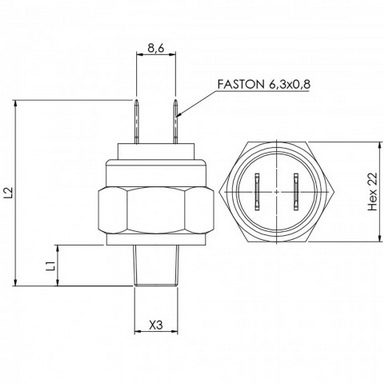

Hydraulic stop switch	Fixed setting pressure switch

Sensitive element: Diaphragms

Setting range: 0,5 - 5,5 bar

Contact type: N.O.

Contact rating: 24 Vcc / 21 VA

Electrical connection:Cable on request

Sensitive element： Diaphragms

Setting range： 1 - 6 bar

Contact type： N.O.

Contact rating: 2 A / 24 V

Electrical connection: Faston 6,3x0,8 / Pins d.4
